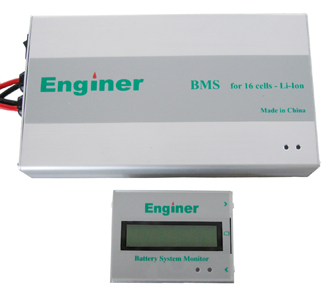

Enginer Battery Management

The Enginer Battery Management System. Rerserve a PHEV System now!

Features

  • Applicable to Lithium-ion batteries
  • System case size: 210mm x 120mm x 37.5mm
  • Monitor case size: 83mm x 65mm x 24mm
  • One single BMS manages 16 battery cells in series
  • Multiple BMS devices manage a pack with 16-cell segments in series or parallel
  • Suspending charging once any single cell exceeds 3.8V
  • Output shutdown relay signal once a single cell drops below 2.5V
  • To avoid over drain the pack, the system shuts down if the pack drops below 36V
  • Balancing the cell whose voltage is lower than average by 0.1V
  • No balancing if average voltage is over 3.3V or single cell is below 1.5V
  • Maximum balancing current to a single cell: 2.5A
  • Displays total voltage and those of single cells
  • Stand-by power consumption: 20mA
  • Balancing efficiency: >80%
BMS16C Manual
BMS16D Manual

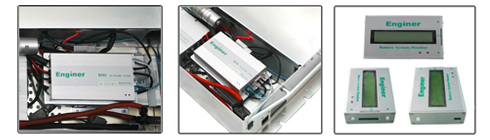

Gallery / Images
